Ram Pumps / Double Ram Pumps

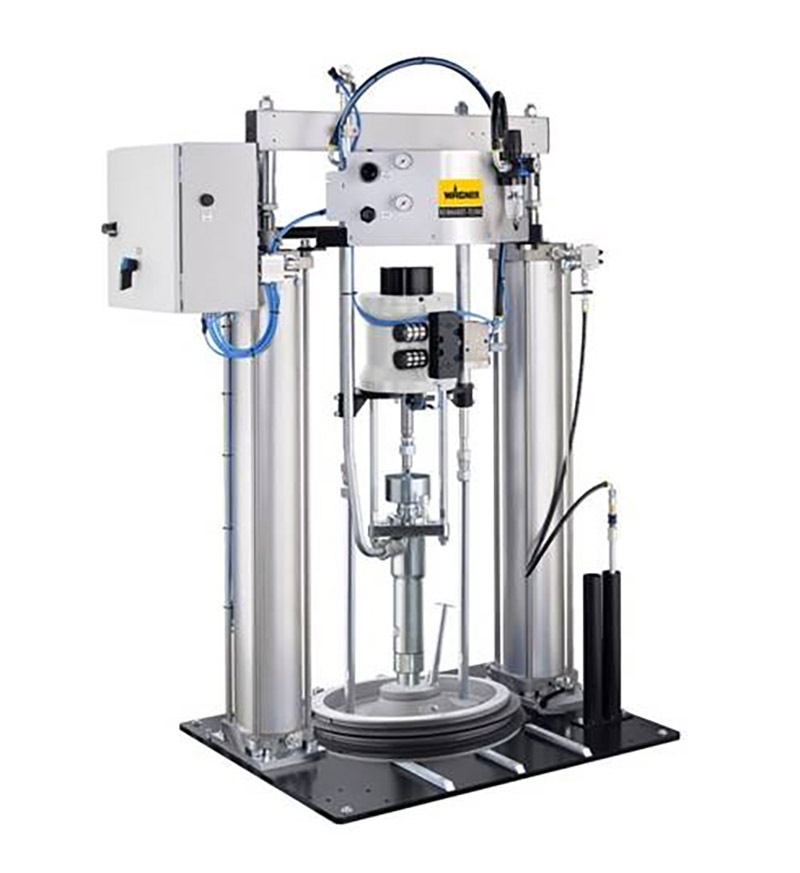

Double Ram Pump

High Performance Piston Pumps

This drum pump model is available exclusively as a double- acting chop check pump. Along with greases and oils, it also processes adhesives, sealants, polyurethanes, or silicones with viscosities of up to 5.0 million mPas.

Material is pressure fed directly from the original containers. The piston pump is ideal for individual station material supply, and it serves equally well as a central material supply system. The pumps in this range are modular, robust, economical, extremely dependable, and easy to maintain and service.

Ram Pump / Double Ram Pump Features

Supply of medium to high viscosity material
Flow rate up to 6 litres/minute at 20 double strokes
Pressure ratio up to 75:1
Max. viscosity 5 million mPas
Differential piston pumps with fast-switching air motors
1- or 2-hand operation
Modular design with configurable components
Sealing available in various sizes and material finishes

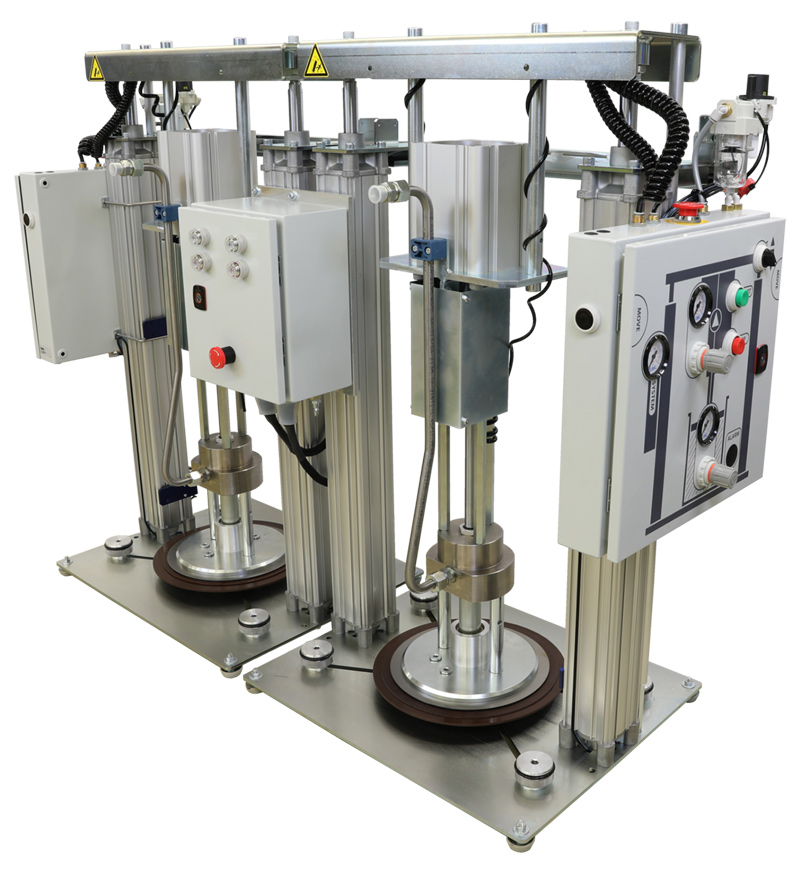

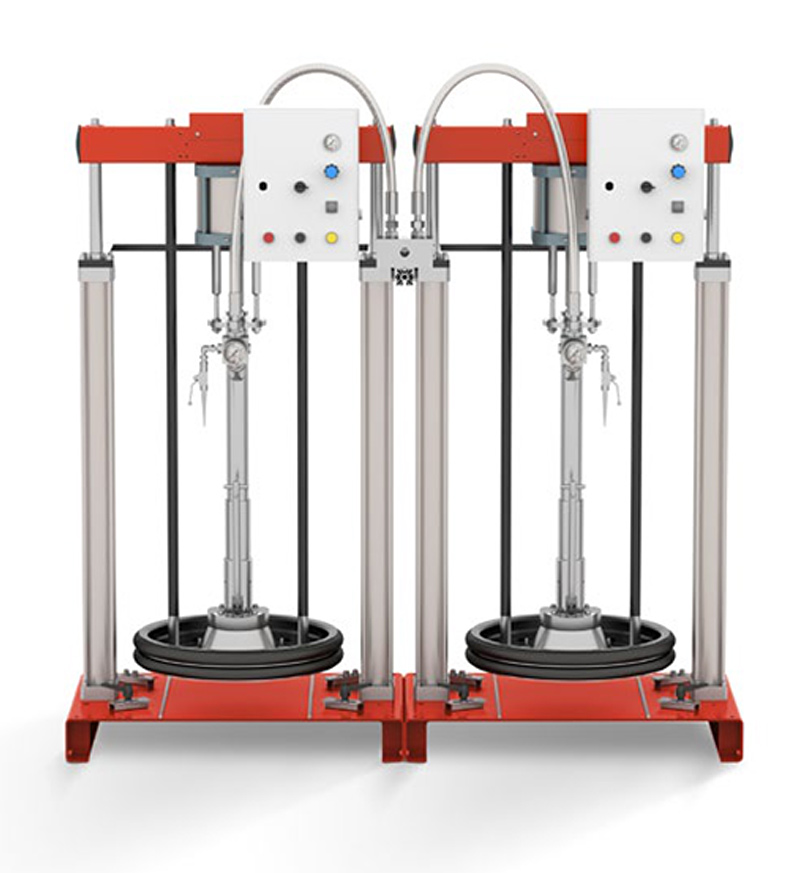

Tandem pumps

Many applications require an uninterrupted material feed maintained at all times. For such cases, all KIRKCO pump models are available as a tandem version.

Tandem pumps feature an automatic mechanism that switches between the pumps whenever material level is low, so that container change can proceed without interruption and time pressure. With clean handling and minimal material residue left in the drum, KIRKCO pumps have earned their place in the most efficient production lines around the world. All sizes are available as tandem versions. Transfer pumps for direct supply from original containers Depending on the application type, it may be useful to be able to supply material directly from the original containers using a transfer pump. KIRKCO transfer pumps are double acting pumps with a fast-switching air motor. It should be noted that the use of transfer pumps is always dependent on the material properties and the container type.
